Sewer pipe line repair in Hampshire: a property owner's repair decision

Reading the backup before anyone picks up a shovel

A sewer problem in Hampshire usually announces itself at the lowest drain in the house. The floor drain by the water heater gurgles when the washing machine empties, a basement shower drains slowly, or after a summer storm there are two inches of gray water on the floor. Those three symptoms point to different causes. Gurgling and slow drains mean something in your lateral is restricting flow, almost always roots at a clay joint or a belly holding water. Water that appears only during heavy rain, with no warning the rest of the year, is usually the public sewer surcharging, which is common in the combined-sewer neighborhoods of the old city core and far less common in the separated systems of the collar-county suburbs.

The distinction matters because the repair is different. A restriction in your pipe is fixed by cleaning and then repairing the pipe. A surcharge is managed with a backwater valve or an overhead sewer conversion, and a pipe repair alone will not stop it. The camera inspection sorts this out in an hour.

What is probably under your Hampshire house

Housing built before 1960 across Kane County was almost always connected with vitrified clay tile in short lengths joined with hub-and-spigot joints packed with mortar or oakum. Those joints are where roots enter and where the pipe shifts as the clay soil swells in spring and shrinks in late summer. Under the basement slab the run is frequently cast iron, which rusts from the inside and loses its bottom first. A number of subdivisions platted in the 1950s used Orangeburg, a tar-impregnated fiber pipe that deforms into an oval and then flattens. Homes in the newer growth areas toward the Fox River and beyond usually have PVC, which fails at a crushed section or a bad glue joint rather than along its length.

Each material fails in its own way and the video shows which failure you have. That is why no competent installer in Hampshire will price a repair from a phone description.

Four ways the repair can go

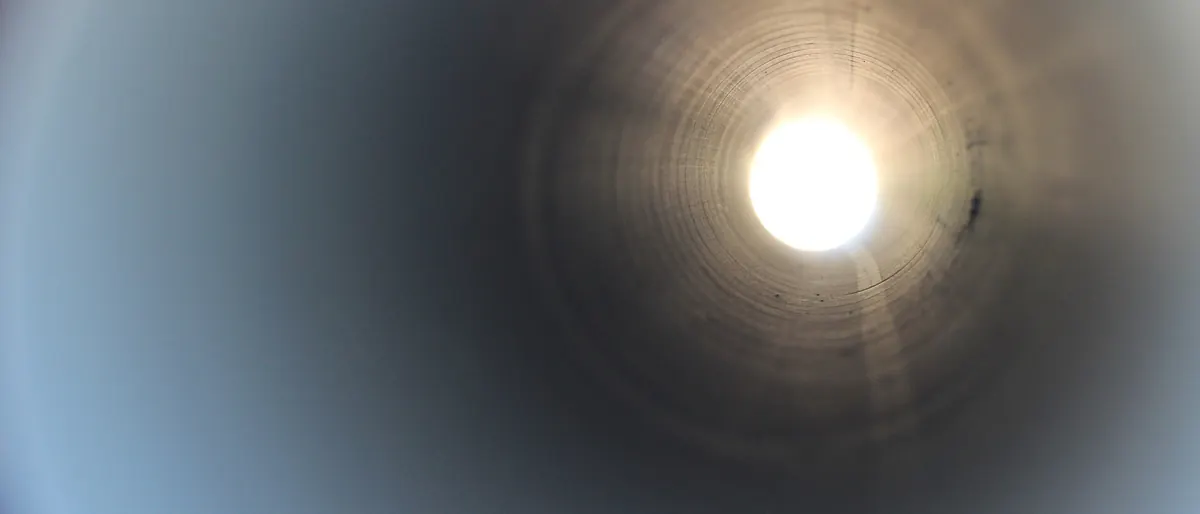

If the pipe still holds a round shape and the defects are joints, cracks and roots, a cured-in-place liner installed through the cleanout is the least disruptive option, and the one that keeps the parkway intact. If the pipe has collapsed, flattened or lost grade, a liner cannot pass, so the choices become pipe bursting between two pits, a short excavation at the bad section, or full replacement by trench. A single bad joint under an otherwise sound run can take a sectional sleeve a few feet long. The method is chosen defect by defect, with the footage counter as the ruler. The local scope and scheduling are described at the American Trenchless Technologies, Inc. service page for Hampshire.

Frost, parkways and the village permit desk

Frost reaches roughly three and a half to four feet in a normal Hampshire winter, and the lateral often sits deeper than that between the house and the main. Trenchless methods keep most of the work below the frost line and out of the public right-of-way, which is the point. A trench across the parkway means a village right-of-way permit, a bonded restoration of the sidewalk and curb, and often a wait for the asphalt plant to reopen in spring. Lining or bursting that stays on your property avoids most of that paperwork, though the plumbing permit is still required and the connection at the main is still inspected.

Overhead sewers and backwater valves

Many Hampshire homeowners deciding on a lateral repair are also deciding whether to add flood protection. A backwater valve installed in the lateral closes when the street sewer surcharges. An overhead sewer conversion reroutes basement plumbing to an ejector pit so the gravity line leaves the house above grade. Either one can be installed at the same time the lateral is lined, and some municipalities offer cost-share programs for them. Ask the installer to address this in the written scope rather than as an afterthought.

What the report and the warranty should say

Before you sign, you should hold a copy of the pre-repair video with distances, a scope that names the method for each defect, the permit responsibility, and a written warranty stating the term and what it covers. After the work, a post-repair video should show the finished pipe end to end. Installer verification standards for lined work are explained at the verified installer profile for American Trenchless Technologies, Inc., and the registry behind them is at the CIPP installer verification registry. The crew serving Hampshire is American Trenchless Technologies, Inc.; reach them at (815) 827-6647. Estimates are free. Call now.
